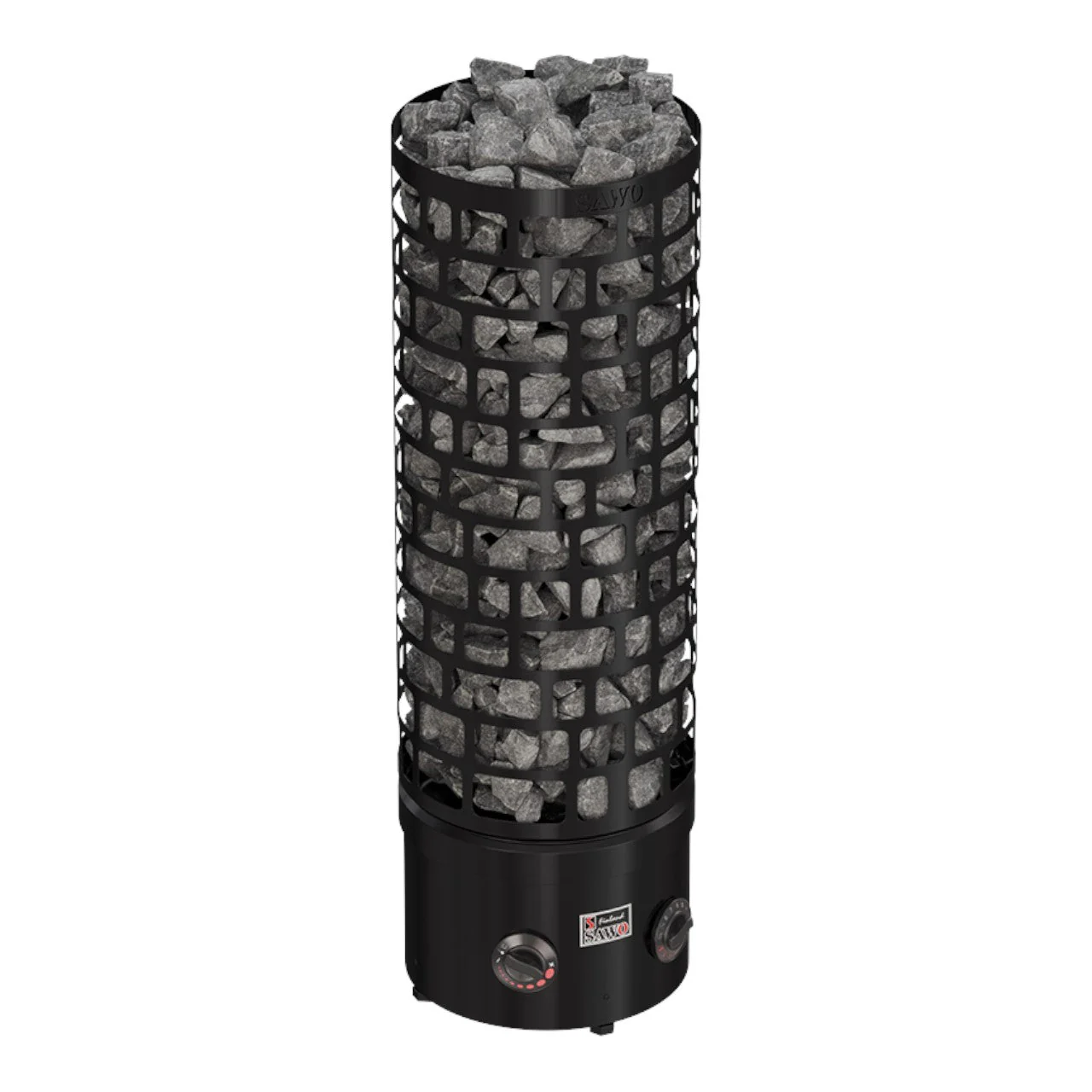

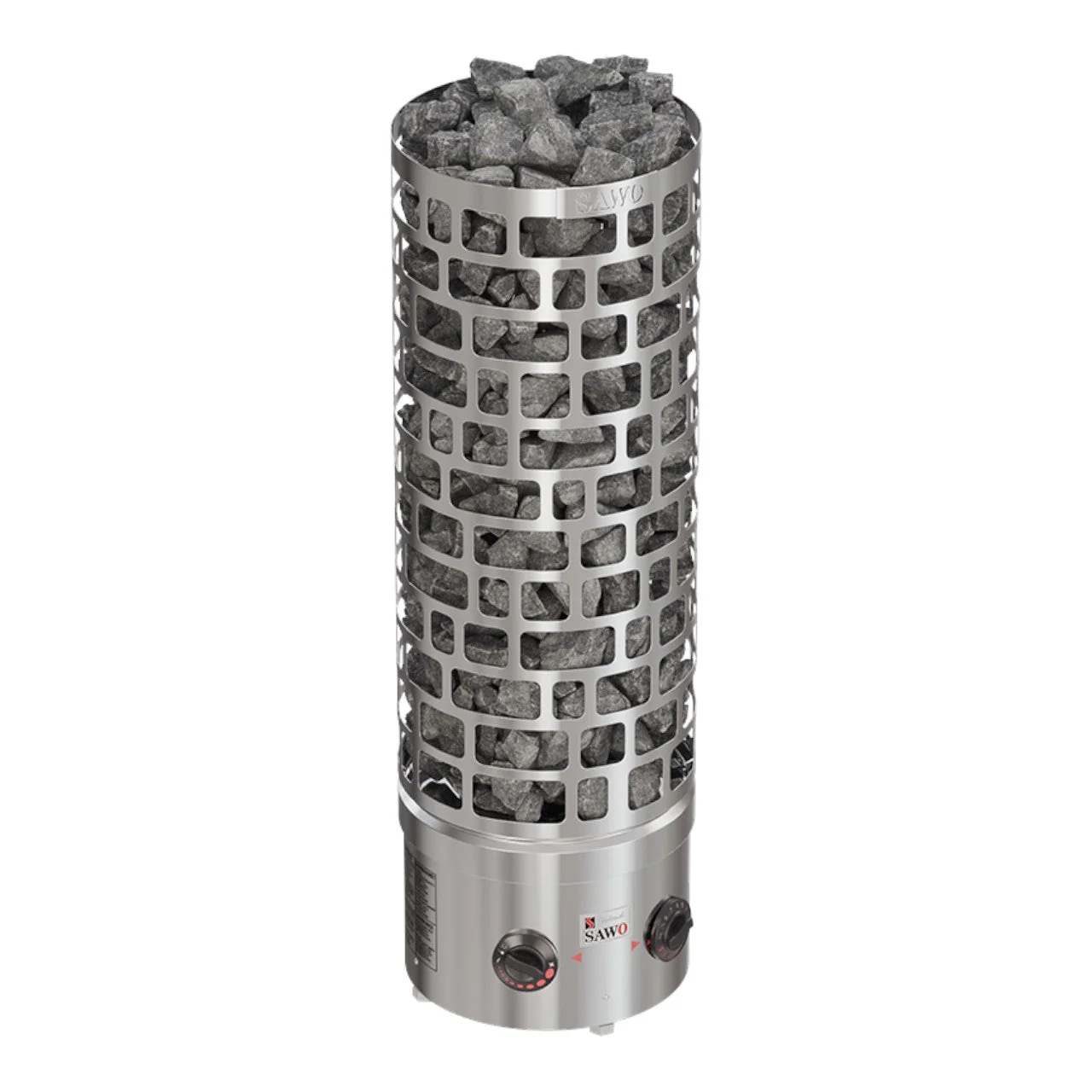

Sawo Aries Round Sauna Heater

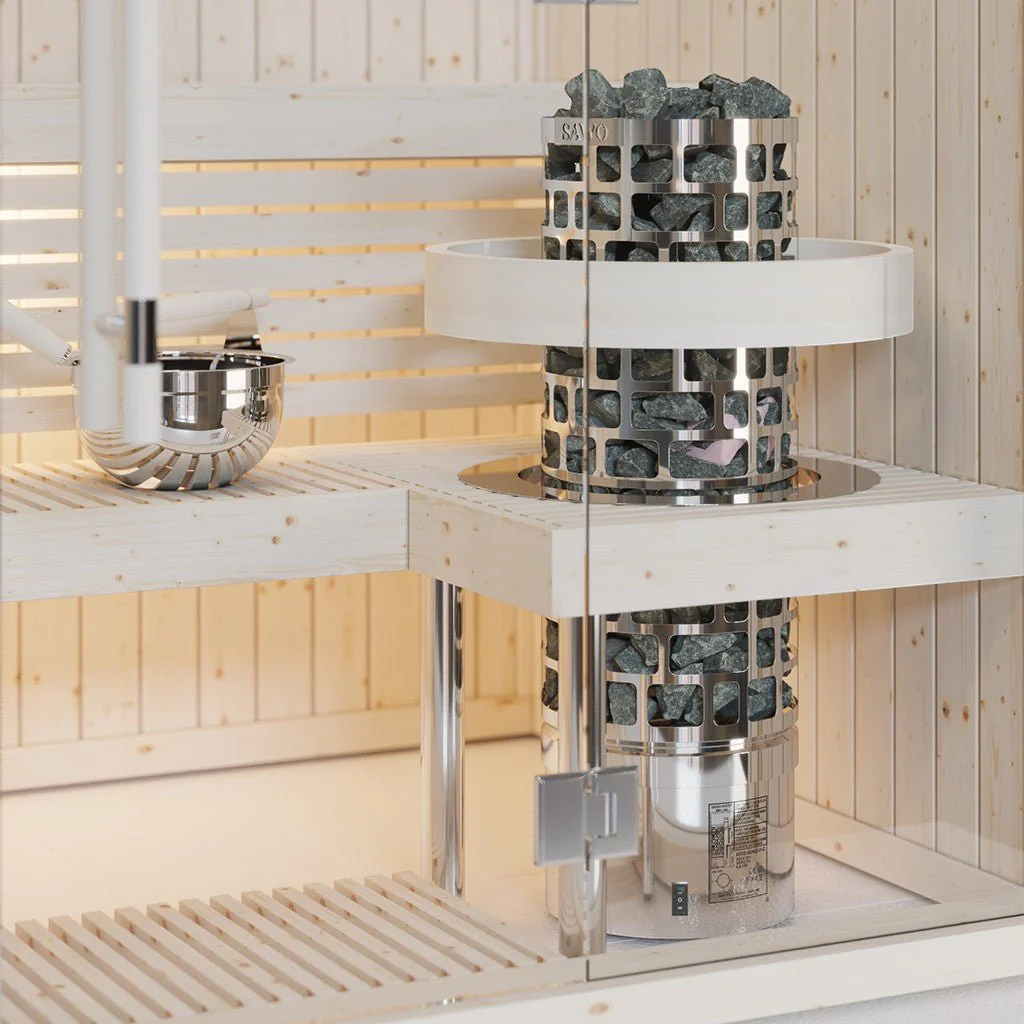

Aries Round is a uniquely designed sauna heater that delivers consistent, medium heat. The stylish round shape makes it perfect for placement in the centre of the sauna or embedded into benches.

Aries Round heater is a versatile option for saunas of all sizes, from small to large (3m³ - 29m³).

Aries Round is equipped with impressive sized stone space and fast heating capability. It is most suitable for small and medium-sized sauna rooms.

Timer and thermostat controls of all Aries models can switch sides. This allows more flexibility for heater location.

Power rating from 4.5 kW up to 9 kW.

• Available controls UKU, NS, NB
• Sauna Experience: Medium heat, Humid
• Built-in stone spacer
• Stainless or black steel casing
• Adjustable legs

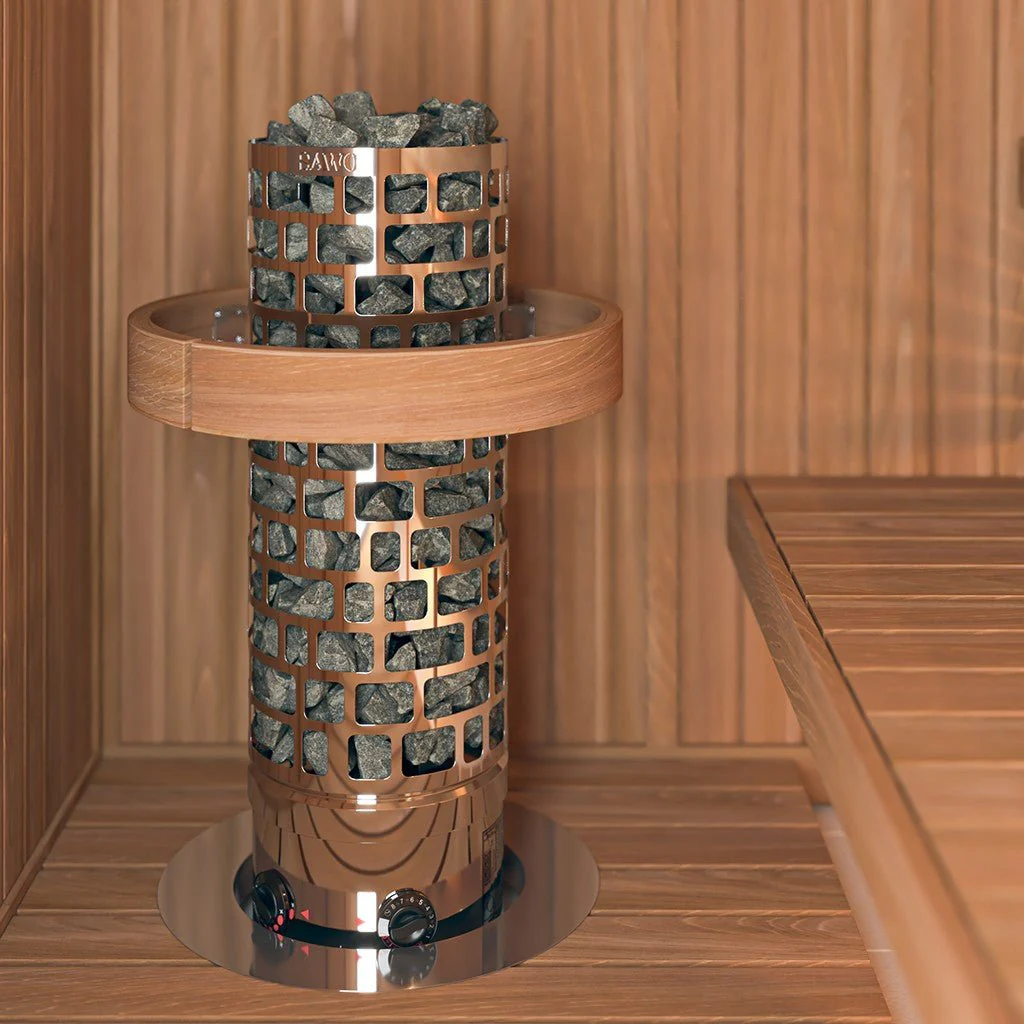

• Optional Heater guard and integration collar

Heater and Control Manuals

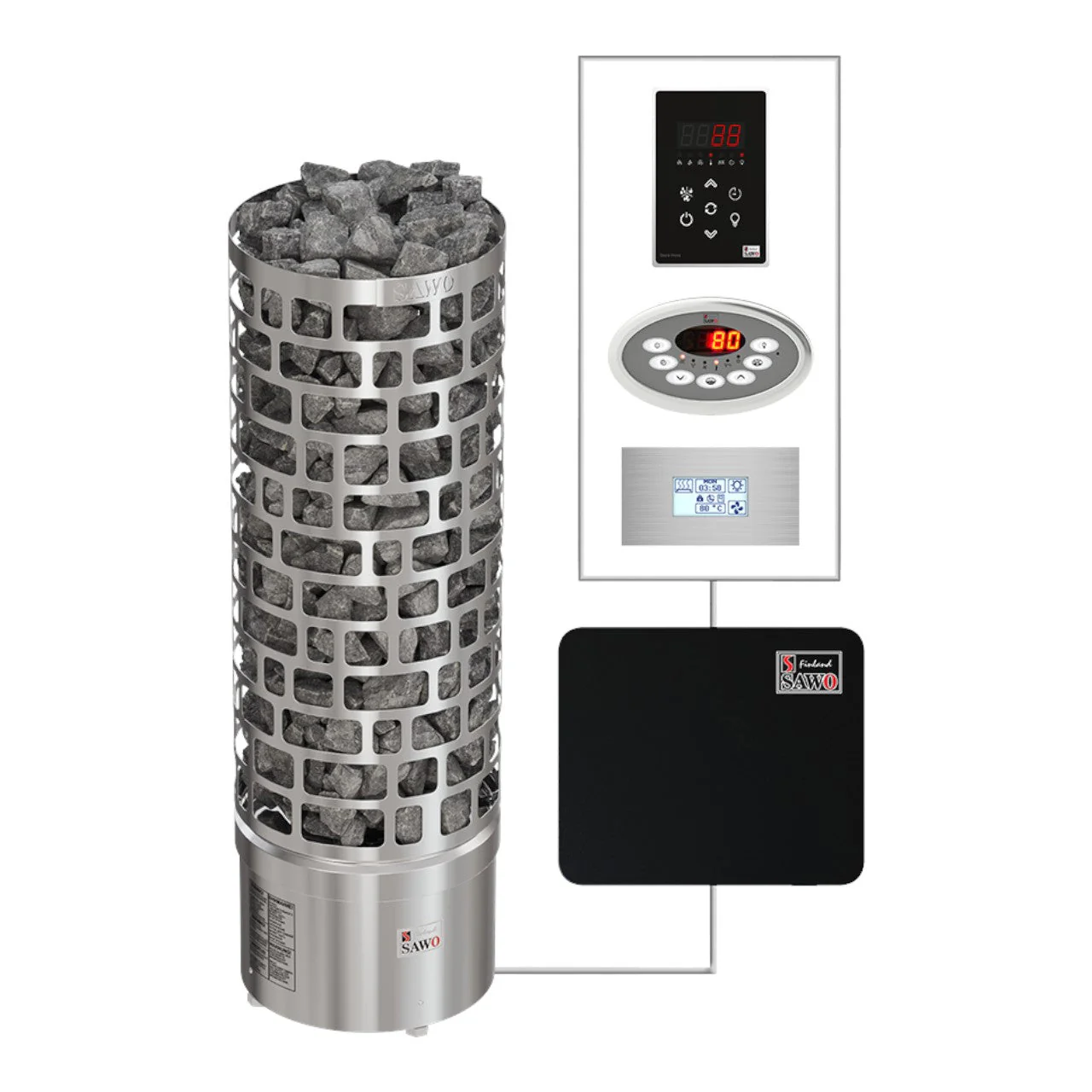

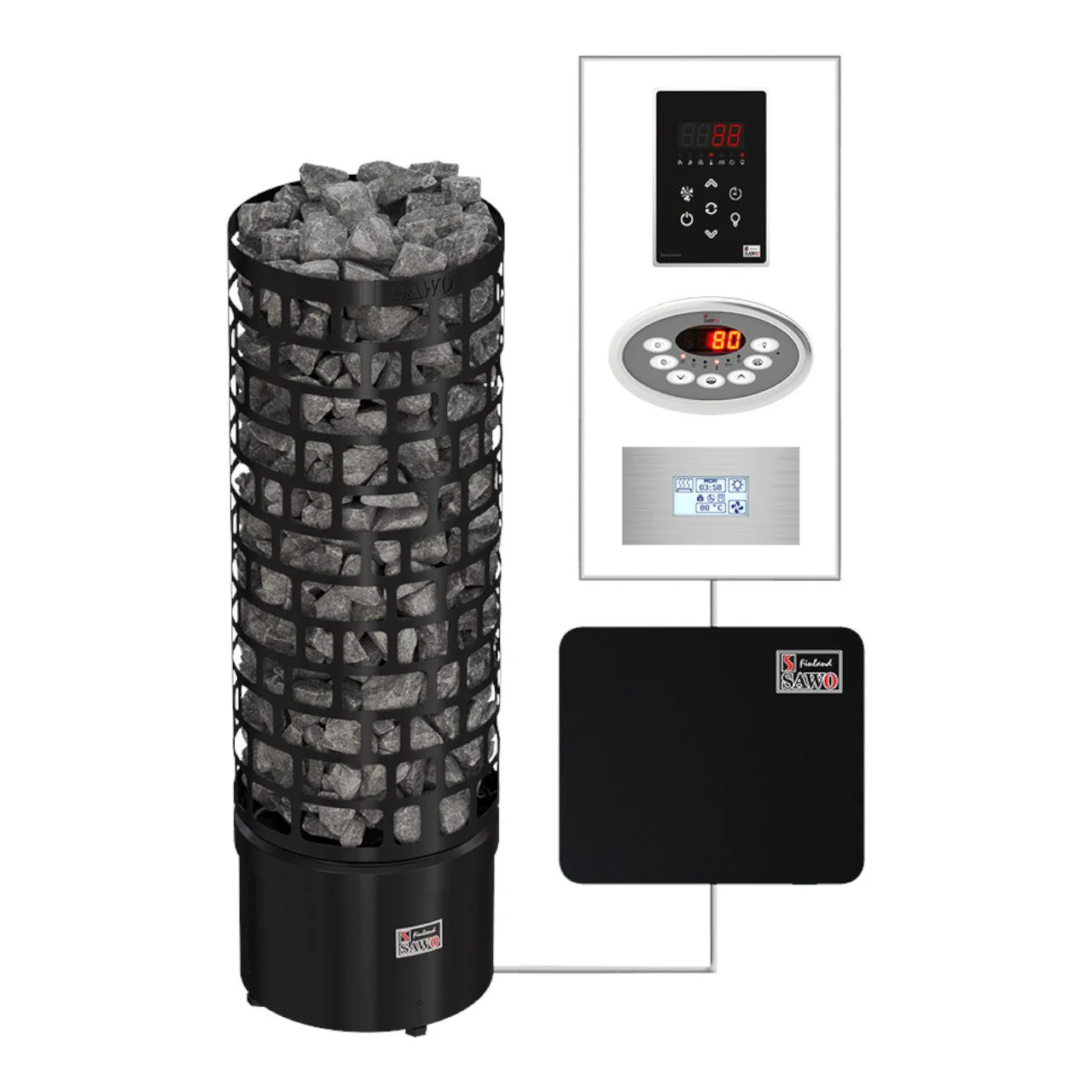

Aries NS / NB Installation Manual

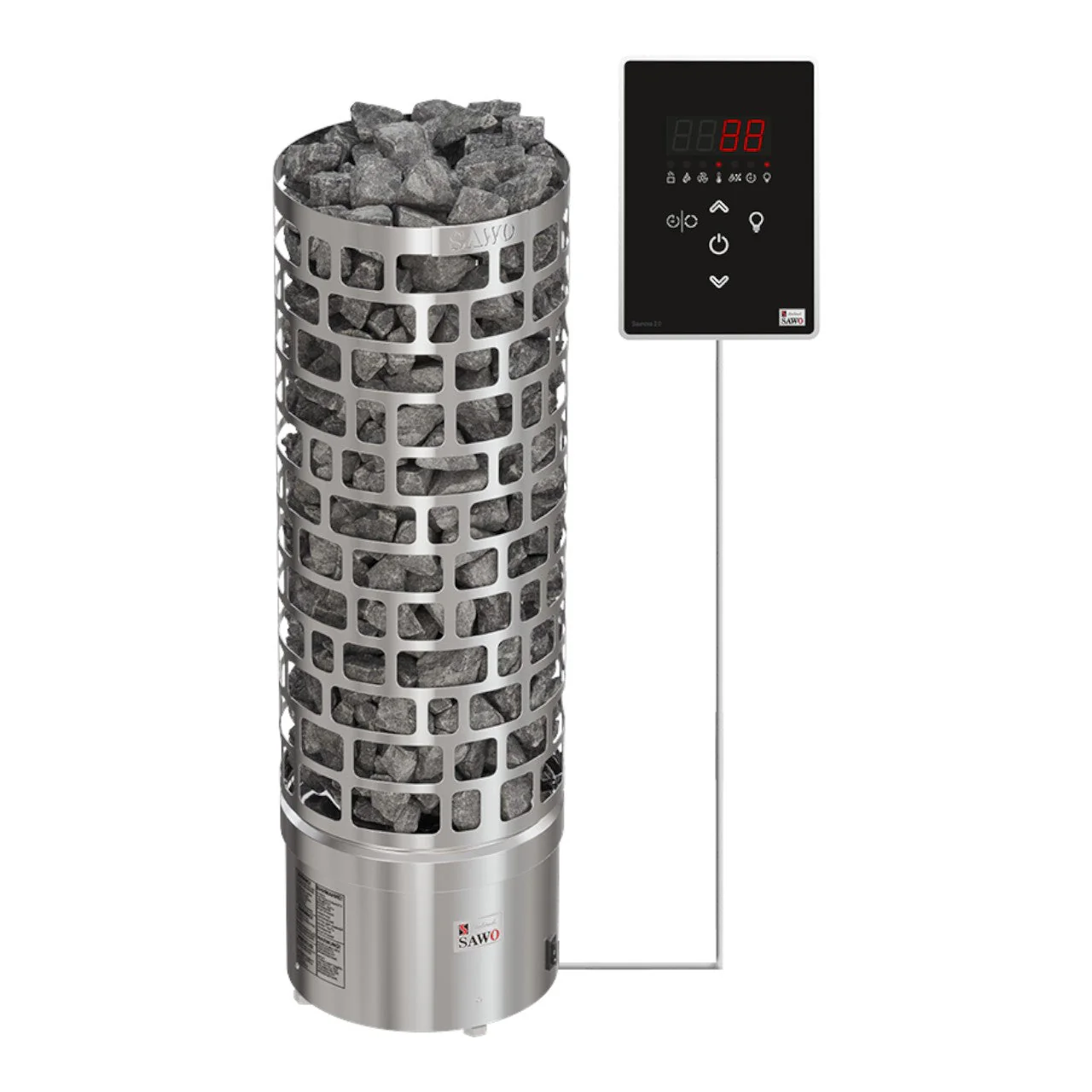

Saunova 2.0 Built In Control Manual

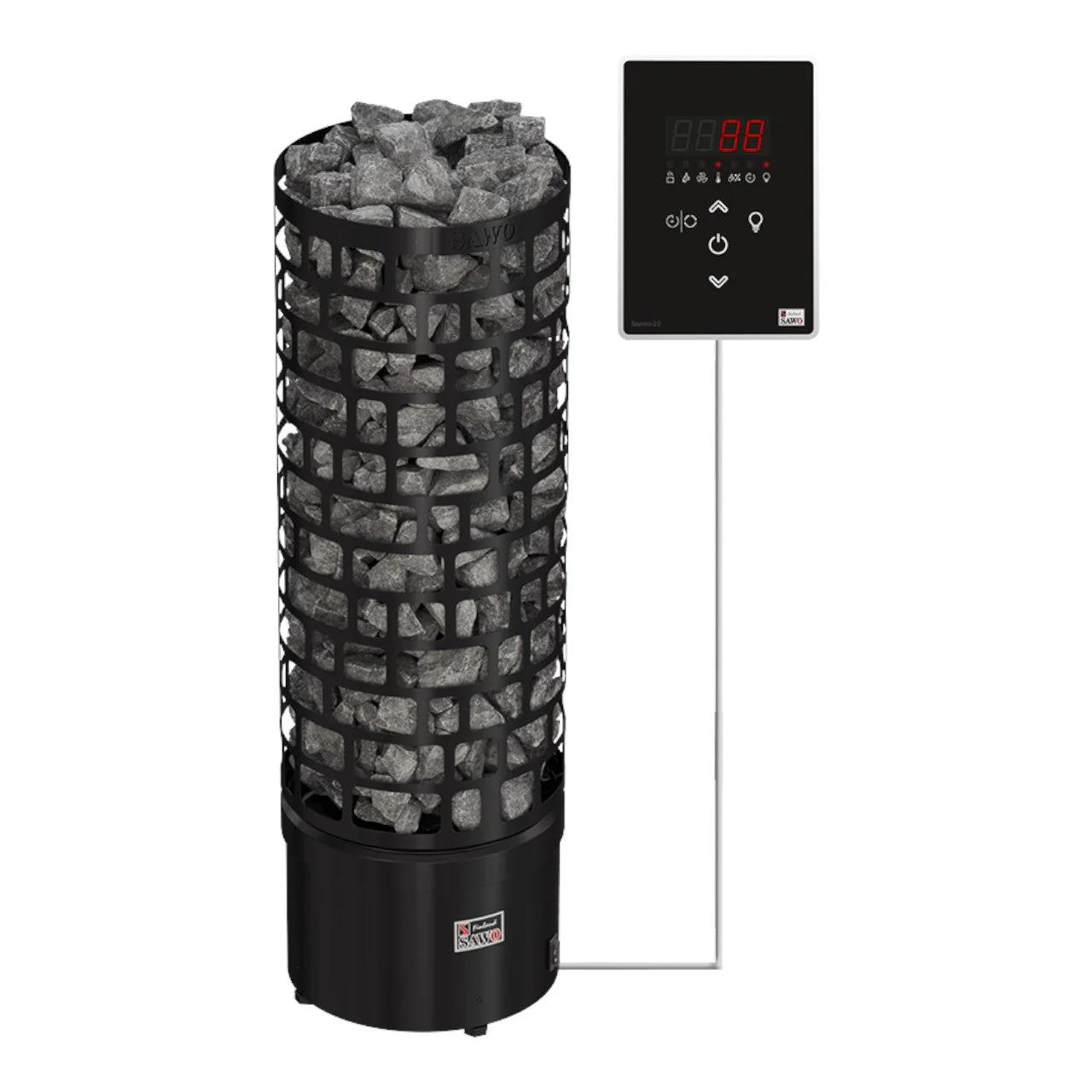

UKU Control Manual

UKU Glass Control Appendix

Aries Specifications

Heater Model	KW	Sauna Room Size (m³)	Control	Size (mm) (Width - Depth - Height)	Stone Capacity (kg)
ARI3-45NB	4.5	3 – 6	8+4h	300 – 300 – 930	60
ARI3-60NB	6	5 – 9	8+4h	300 – 300 – 930	60
ARI3-75NB	7.5	7 – 13	8+4h	300 – 300 – 930	60
ARI3-90NB	9	8 – 14	8+4h	300 – 300 – 930	60
ARI3-45NS	4.5	3 – 6	Separate	300 – 300 – 930	60
ARI3-60NS	6	5 – 9	Separate	300 – 300 – 930	60
ARI3-75NS	7.5	7 – 13	Separate	300 – 300 – 930	60
ARI3-90NS	9	8 – 14	Separate	300 – 300 – 930	60

See the Aries Range in Action
