Saunum Auto Leil

Full Description

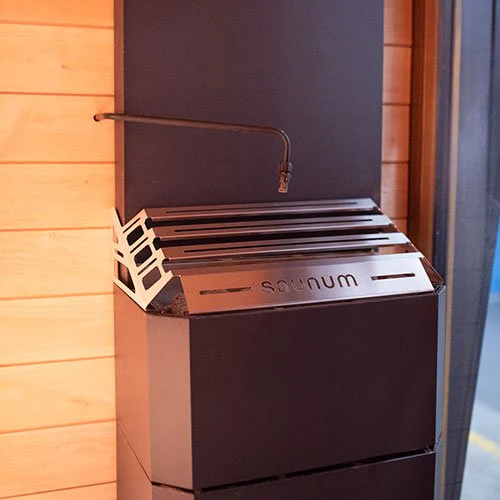

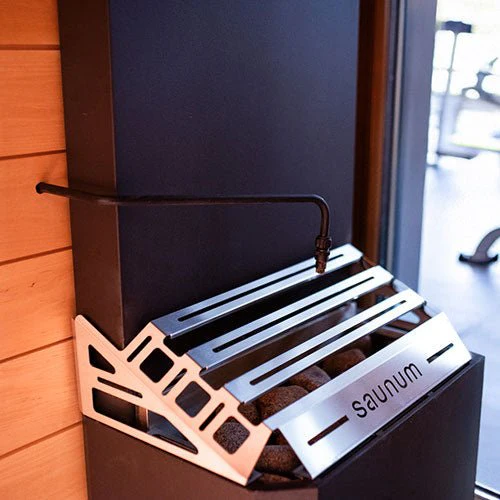

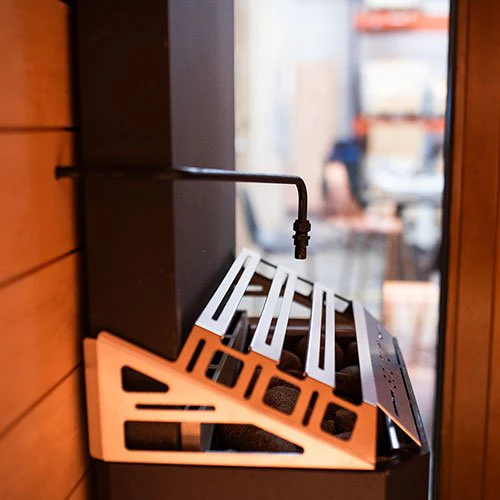

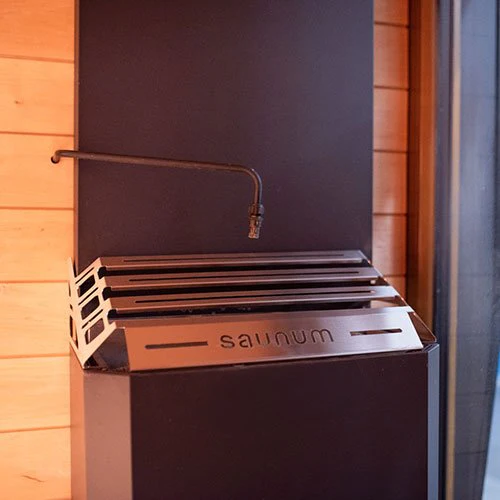

In a good sauna humidity is just as important as temperature. Saunum AutoLeil is an additional device for the heater that automatically throws water on it and helps you control the humidity in the sauna room.
Saunum AutoLeil is designed for Saunum heaters and is controlled through the Saunum Leil control unit. With the Saunum Leil control panel, you can pre-set 3 different types of steam and enable the use of AutoLeil.

AutoLeil can also be set to ensure that the sauna user enters a comfortably moist sauna room at the designated time. When the sauna room is heated to the desired temperature, AutoLeil ensures water dispension to the heater according to desired settings

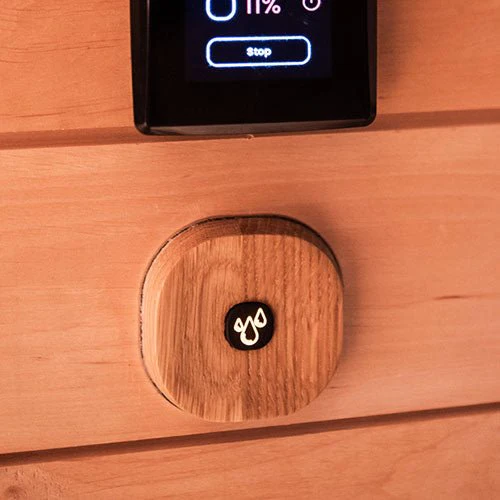

The AutoLeil kit also includes a button with LED lighting for throwing water in the sauna room. It is also possible to turn automatic water throwing on or off with this button while in the sauna. The length of one water dispensing cycle is set to 30 minutes by default. It can be changed up to 12 hours, for example, for public saunas. Water can be taken from any household tap.



Features

• Easy Install
• Pre-set 3 different types of steam
• Automatic humidity control mode
  • sets the target room temperature (40–100 °C) and relative humidity (10–60% depending on temperature) to specific values.
• Manual control mode
  • sets the target sauna room temperature (40–100 °C), water quantity (valve opening time 0.3–4 sec), and water throwing interval (1–10 min) to specific values.



Includes

• A control unit
• An operating button
• A spray nozzle
• A humidity sensor
• Communication cable from AutoLEIL to LEIL
• Button cable
• Humidity sensor cable
• Water valve connection cable
• Power cable
• Water valve
• Button drilling template
• Set of screws (etc. LEIL box)



Specifications

Model	Auto Leil
Humidity adjustment range	5–60 %RH.
Water output period adjustment range	0.3–4 sec.
Automatic water dispensing interval adjustment range	1–10 min.
Automatic water dispensing function duration adjustment range	1– 30 min or 1–12 hrs settings.



Main Unit
Supply voltage	230V 1N
Length of outlet hose	4.9'
Dimensions	2.8" × 2.8" × 0.6" (7.1cm x 7.1cm x 1.5cm)



Humidity Sensor
Length of cable	13.1'
Dimensions	1.2" × 2" × 0.8" (3cm x 5cm x 2cm)
