Saunum Air L 10kW

Full Description

Saunum Air L 10 is a unique heater with a sauna climate regulating system that is ideal for creating an extraordinary sauna session in a more intensively used sauna. The large stone volume of the Saunum Air L 10 and the patented air-blending system ensure exceptional steam that is soft and long, and evenly distributed throughout the sauna.



Features

• Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen is felt head to toe.
• European Design – With elegant black steel finish, Saunum combines Scandinavian design and quality materials. Select the the simple elegance of the Nordic black steel body.

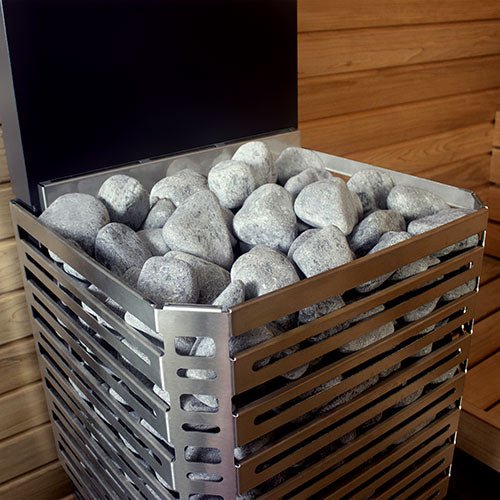

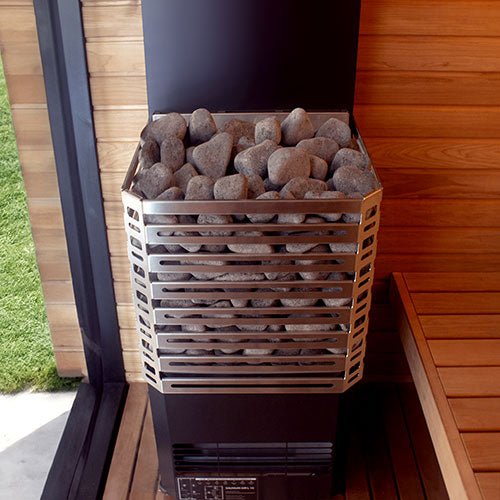

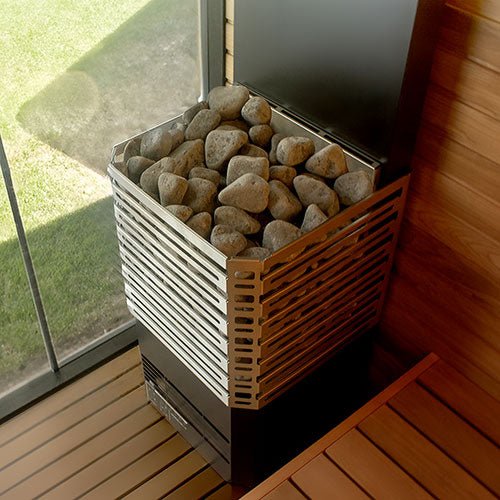

• Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 198 pound stone capacity (required 6 boxes sold separately).
• Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
• Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.

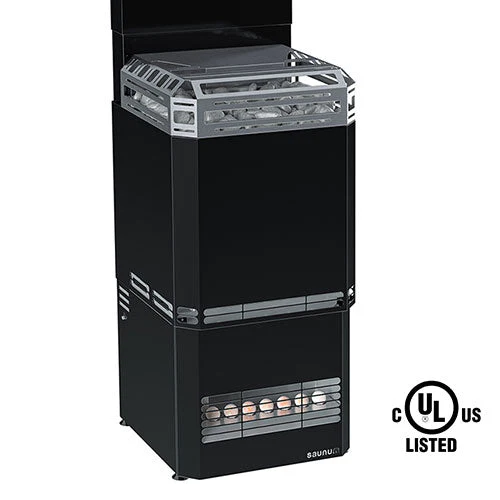

• UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
• Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
• For sauna rooms from 247 to 459 cu. ft.



Includes

• Saunum Air L 10 Sauna Heater
• Hot Air Intake Cap
• Hot Air Intake
• Stone Basket
• Air Outake Grille
• Cool Air Intake Valve
• Protective Grill
• Himalayan Salt Spheres (7)
• Himalayan Salt Tray
• Temperature Sensor
• Installation and Operation Manual
• 2-Year Warranty (Consumers Use)



Specifications

Heat Equalizing System
Model	Air L 10
Certification/Global Safety Rating	UL (Underwriters Laboratories)
Heat/Steam Equalizer Module	3-Speeds, Whisper-Quiet Operation
Ceiling Hot Air Intake	17.72" x 4" (450.09 x 101.6mm)
Cool Air Intake Type	Adjustable Valve, Side-Mounted, 12" (304.8mm) Off Floor
Cool Air Intake Size	2" x 2.75" (50.8 x 69.85mm)
Blended Air Output	4.31" x 14.13" (109.47 x 358.9mm)
Himalayan Salt & Aroma Tray Type	Removable, Slotted
Himalayan Salt & Aroma Tray Size	16.5" x 4.5" (419.1 x 111.76mm)



Sauna Heater System
Model	Air L 10
Certification/Global Safety Rating	UL (Underwriters Laboratories)
Heater Body Style	Solid Steel - Nordic Black
Heating Elements	Incoloy (Stainless Steel)
Heating Element Protection (included)	Air Tunnels, Slotted Stainless Steel, Three
Room Size	247-459 (7-10 Cubic Meters)
Wattage Rating	9800
Operating Voltage	240VAC
Phase	1
Amperage	41.66
Weight	147 lbs (67 kg)
Shipping Weight with Stones	345 lbs (157 kg)
Product Depth	18.1" (460mm)
Product Width	19" (483mm)
Product Height (including telescopic air intake)	72.25-95" (1850-2400mm)
Minimum Ceiling Height	71" (1803mm)
Stone Capacity	198 lbs (90 kg)
Stone Size (sold separately)	2" - 4" (5-10 cm)
Circuit Breaker	See Installation and Operation Manual
Wire Size to Power Unit	#6 +N + G



Manuals

Saunum Air L 10 Installation and Operation Manual
Saunum Warranty
