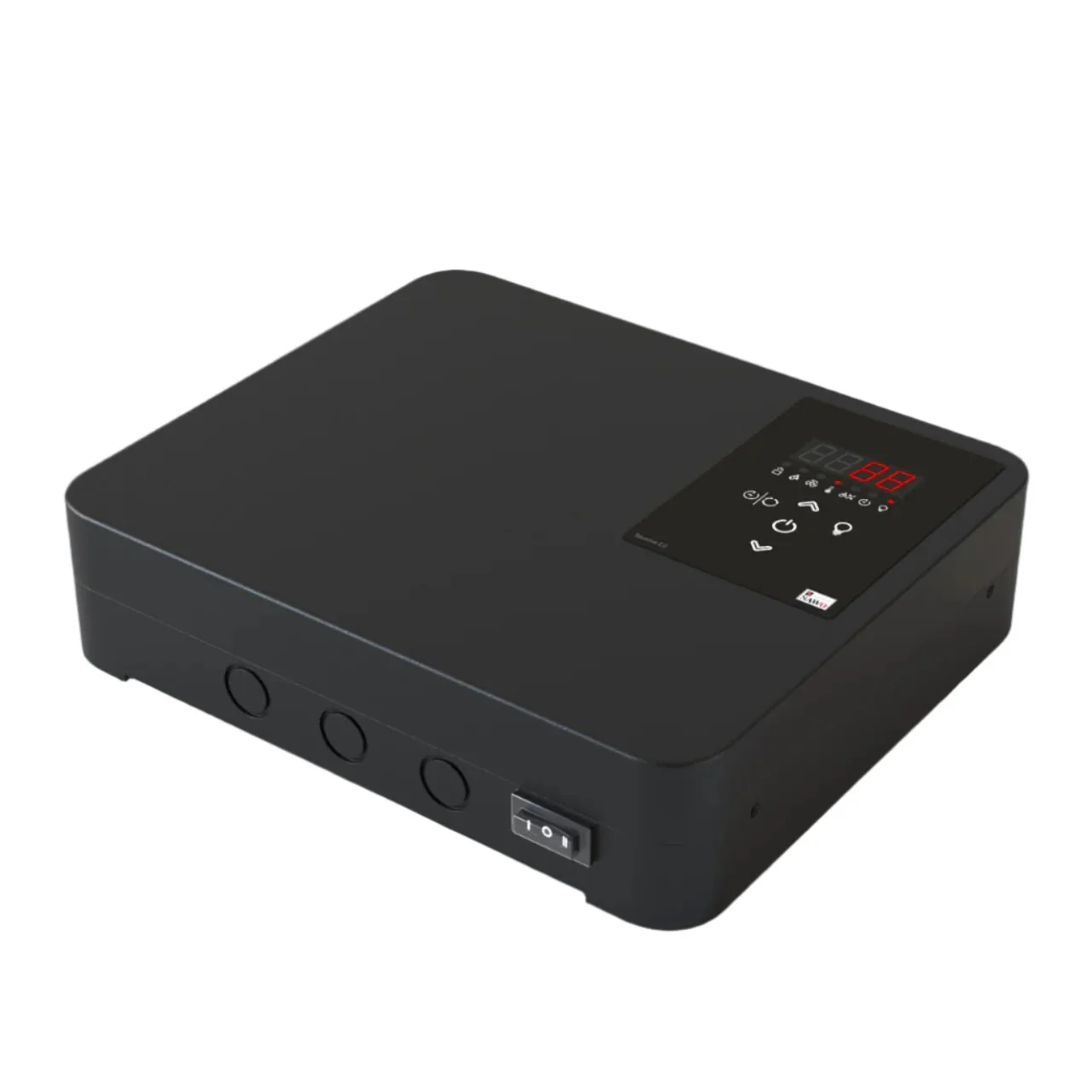

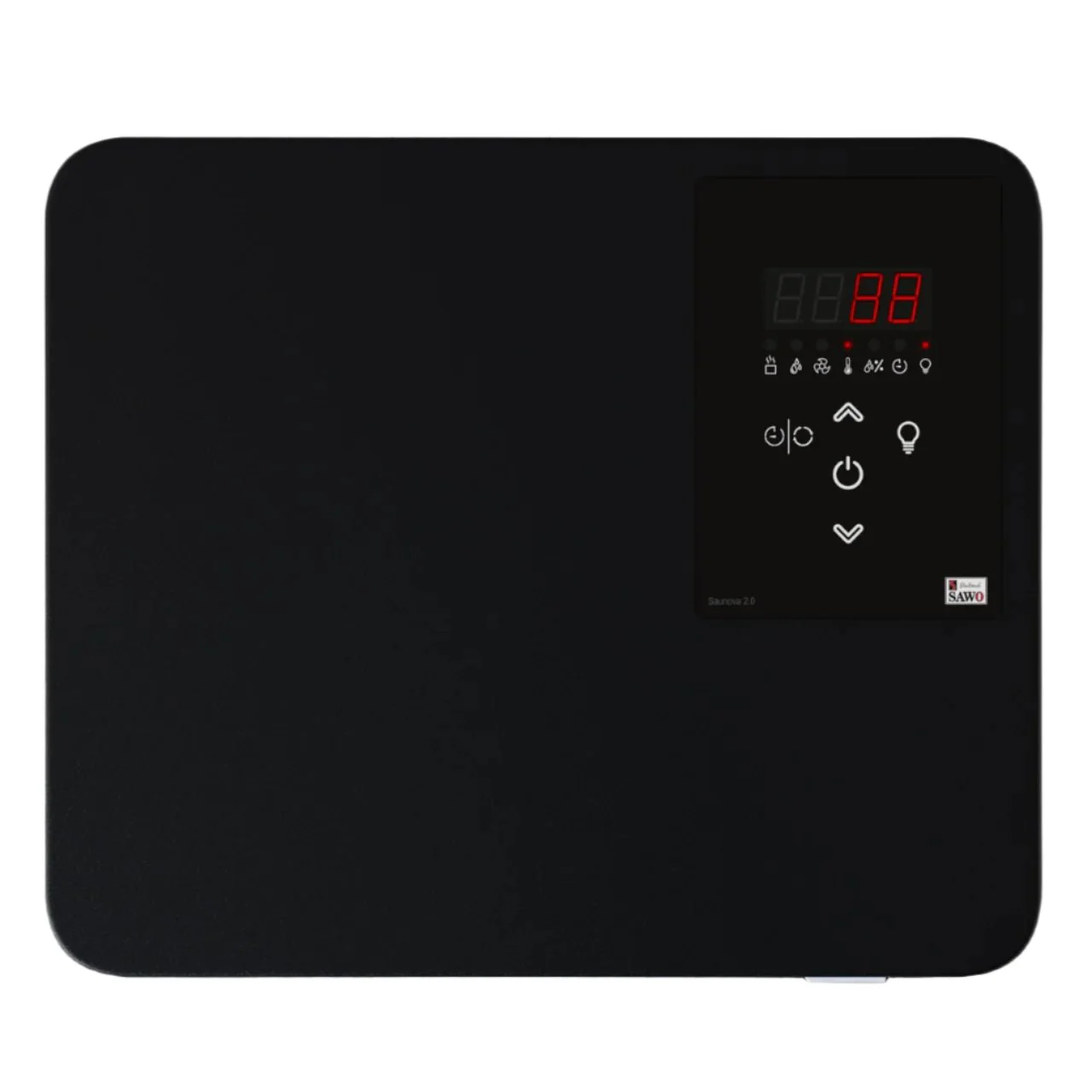

Innova 2.0 Built-In Control

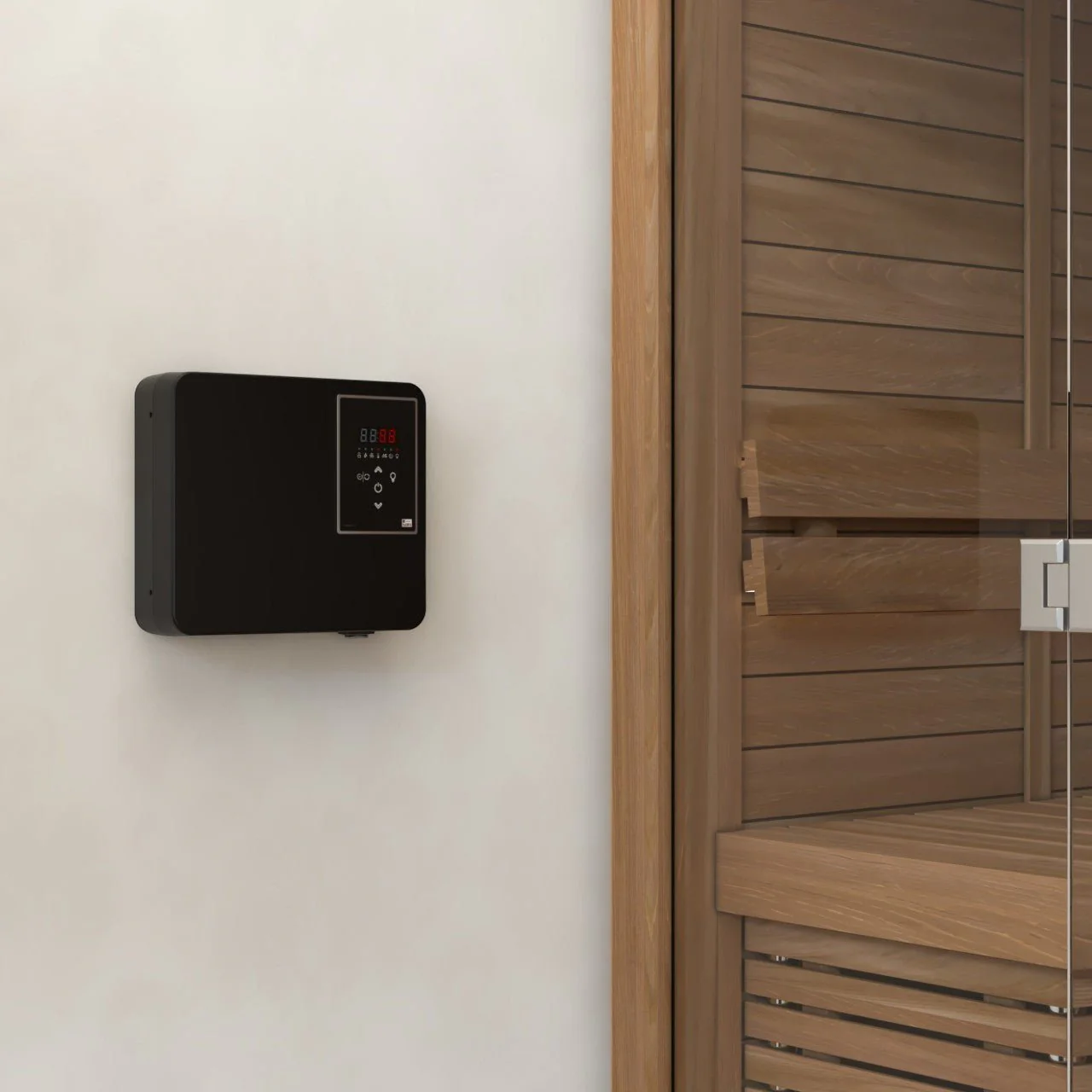

The popular Innova 2.0 is now available as Built-In. The Built-in combines the control panel and power controller into one package. Convenient solution for residential saunas or commercial saunas, where control is placed in a separate room.

Innova 2.0 Built-in allows easily adjust the temperature, humidity, ventilation and brightness in the sauna.

The control uses smart technology which automatically shuts off heating elements when set temperature has been reached, increasing heating element life span and saving energy.

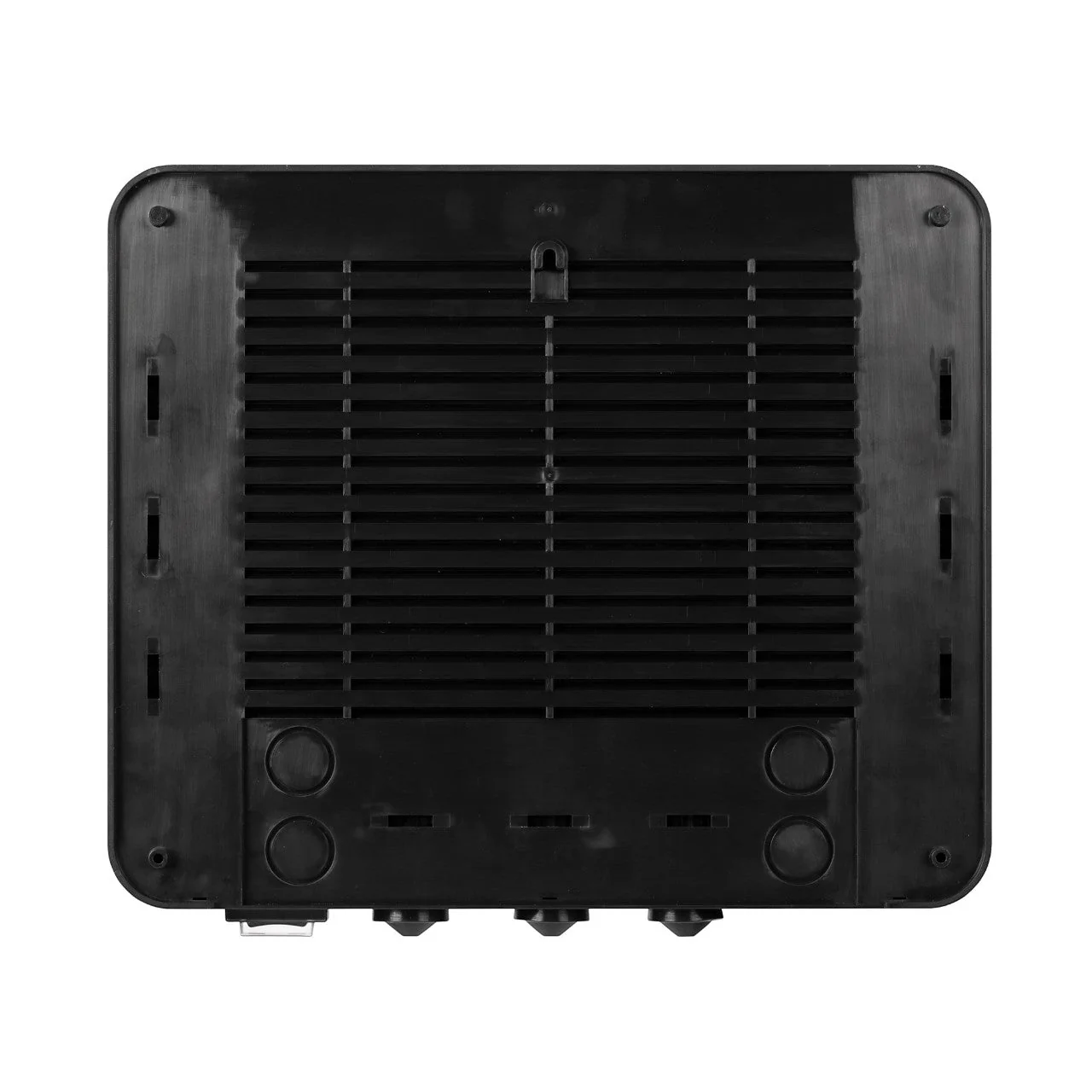

New modernized casing has more space for easier and faster installation. Flexible wiring options with strain relief provision on 4 sides, including the back part for wiring to be completely hidden.

• For all NS Heaters 2.3-15kW, for over 15kW add Innova 2.0 Contactor Unit
• Smart Controlling-feature
• Compatible with Door Sensor
• Pre-run timer
• Optional Fan, Dimmer and Combi-feature

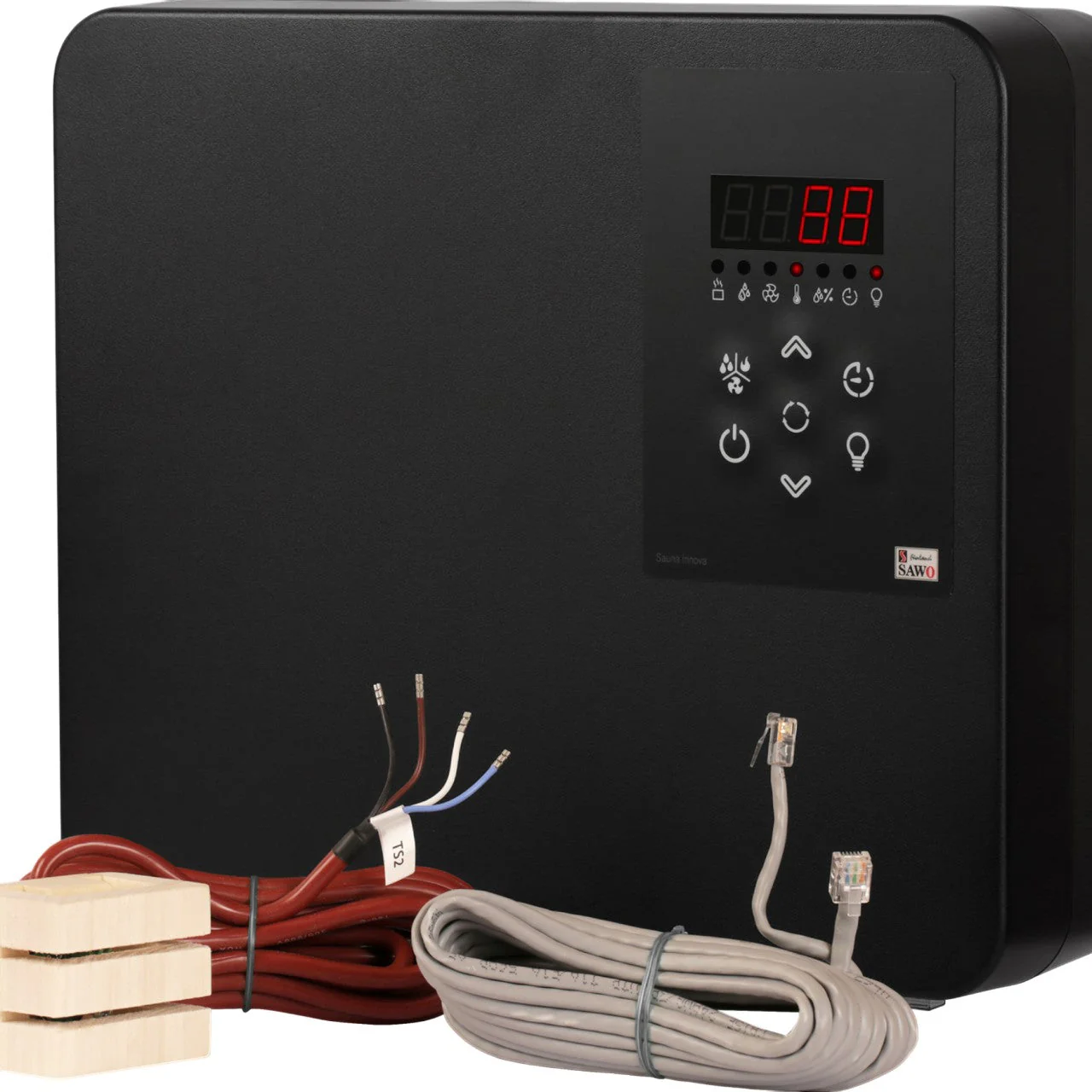

Set Includes:

• Built-In Control with User Interface and Power Controller
• RJ12-Cable
• Temperature Sensor with Bass wood cover

Optional:

• Bench Sensor
• Bench & Humidity Sensor
• Innova 2.0 Contactor Unit

Innova 2.0 Built-In - Specifications
Technical Details
Suitable Heaters	2.3 – 15kW (with Contactor Unit: 16-24kW)
Temperature Range	10° - 110°C
Rated Voltage	400V 3N~ (3Phase) / 230V 1N~ (1Phase)
Max. Session Time	4h, 6h, 12h, 18h, 24h
Product Dimensions
Innova 2.0 Built-In Control (INC-B-V2)	L: 32cm x H: 27cm x W: 8cm | 2.6KG
Innova 2.0 Built-In Control with Dimmer & Fan (INC-B-DF-V2)	L: 32cm x H: 27cm x W: 8cm | 2.66KG
Innova 2.0 Built-In Control Combi (INC-B-C-V2)	L: 32cm x H: 27cm x W: 8cm | 2.88KG
Innova 2.0 Built-In Control Combi with Dimmer & Fan (INC-B-CDF-V2)	L: 32cm x H: 27cm x W: 8cm | 2.9KG
