HUUM HIVE Mini 6kW Bundle

Full Description

The HUUM HIVE Mini 6STU sauna heater package features all the necessities that will give your sauna space a touch of tradition. This all-inclusive package includes the HIVE Mini 6kW sauna heater, UKU control with optional Wi-Fi, and 330 lbs of sauna stones.

Precision-engineered and crafted in Estonia for a true European sauna experience.



Features

HIVE Mini 6.0kW Sauna Heater

• Elegant design
• 240V/1PH operation
• Works with UKU controls
• 330 pound stone capacity
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Floor model with adjustable legs
• Air tunnel shortens heat-up time and increases life of heating elements
• SGS listed
• Designed, engineered, and made in Estonia
• Dimensions: 18.1"Diameter (460mm) x 29.5"H (750mm)
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

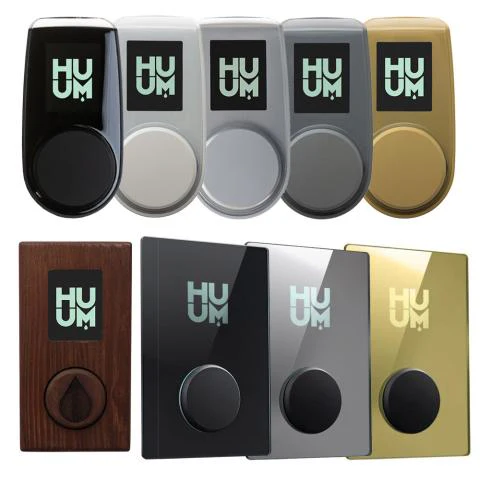

UKU Control

• Sleek black control display panel
• Multiple color options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230°F
• Delayed start up to 48hrs in advance
• Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
• Limited 3-year residential warranty and limited 1-year commercial warranty

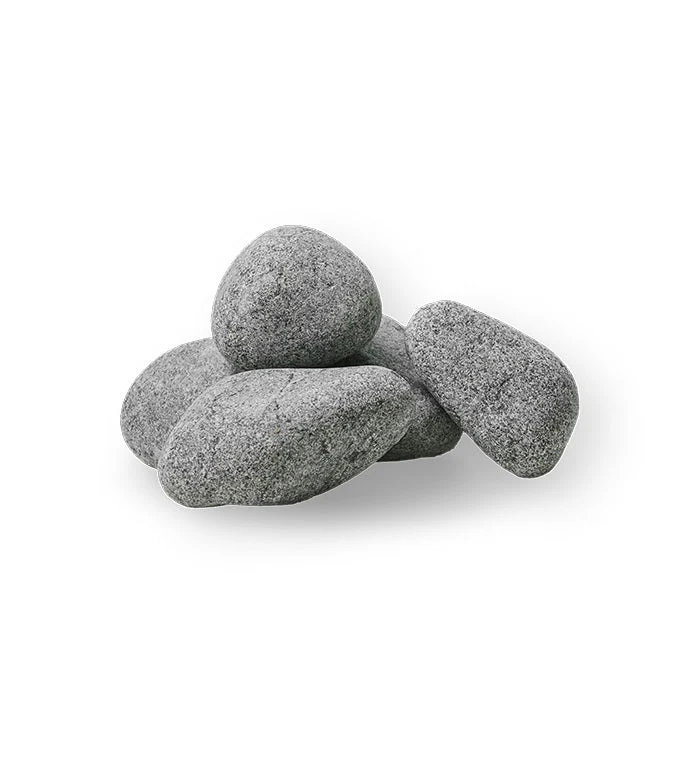

Stones 24

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

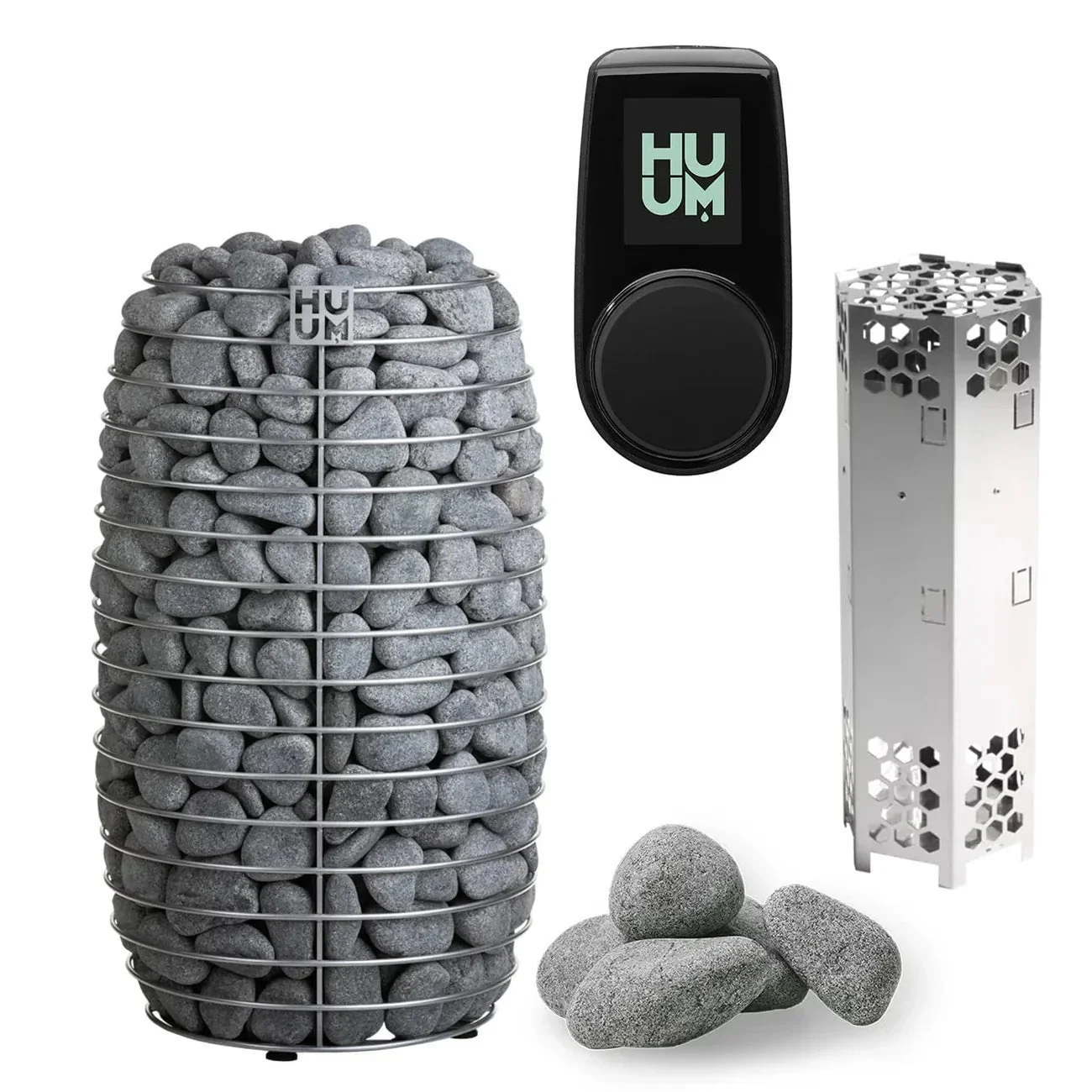

Includes

HIVE Mini 6.0kW Sauna Heater

• 6.0kW Sauna Heater
• Adjustable Legs
• Pre-Installed HIVE Air Tunnel
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU Control

• Black Control Console
• Main Control Module
• Temperature Sensor
• Door Sensor
• Control Display Panel Cable
• Temperature Sensor Cable
• Door Sensor Cable
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 24

• 330 lbs of 2" - 4" (5-10 cm) Round Sauna Stones



Specifications

HIVE Mini 6
Kilowatt Rating	6.0kW
Minimum Cubic Feet	177
Maximum Cubic Feet	318
Heater Weight	35.9 lbs
Shipping Weight with Sauna Stones	365.9 lbs
240V, Single-Phase Amperage	25
Circuit Breaker	See Installation and Operation Manual
Wire Size AWG	10
Diameter	18.1" (460mm)
Height	29.5" (750mm)



UKU Control
Minimum Temperature Setting	104°F
Maximum Temperature Setting	230°F
Shipping Weight	20 lbs
Console Dimensions
Width	2.2" (55mm)
Depth	0.9" (22mm)
Height	4.1" (105mm)
Main Module Dimensions
Width	3.5" (90mm)
Depth	2.3" (58mm)
Height	5.6" (142mm)
Display Panel Cable
Length	9.8 ft
AWG	22
Temp Sensor Cable
Length	16.4 ft
AWG	24
Door Sensor Cable
Length	16.4 ft
AWG	24



Safety Clearance
