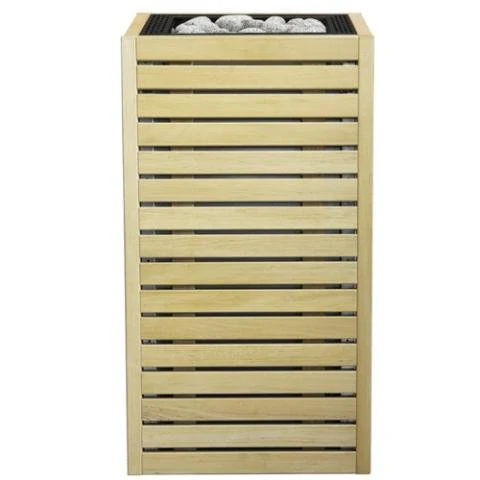

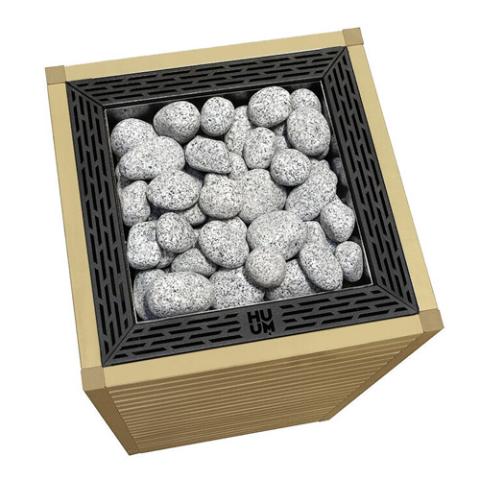

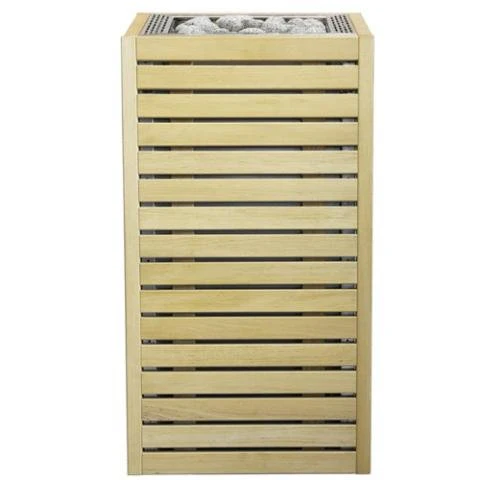

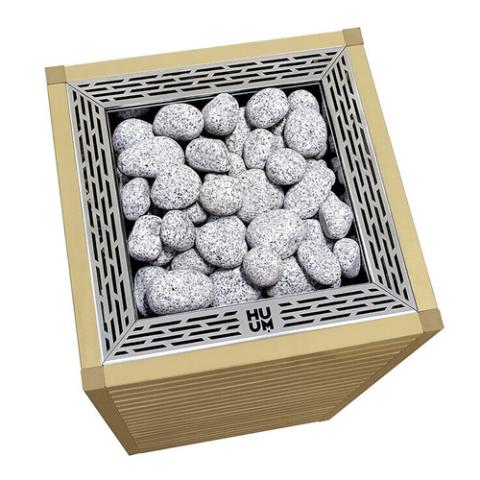

Huum Core BK Alder 9kW

Full Description

The HUUM CORE Sauna Heater offers flexibility and style, featuring premium Alder wood exterior panels for a classy, natural appearance. This elegant and powerful unit is engineered for sauna rooms up to 566 cubic feet (CF).



Features

• 240V/1PH operation
• Built to match the sauna room aesthetic
• Can be completely embedded into a sauna bench
• Direct contact between stones and heating elements
• Stainless steel, industrial quality heating elements
• Designed, engineered, and made in Estonia
• Works with UKU Controls (sold separately)
• 66 pound stone capacity (required 2 boxes sold separately)
• Dimensions: 12.2"W (31 cm) x 12.2"D (31 cm)  x 32.7"H (83 cm)
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)



Includes

• Sauna Heater
• Unfinished Metal Shields (4)
• Cover Strips (4)

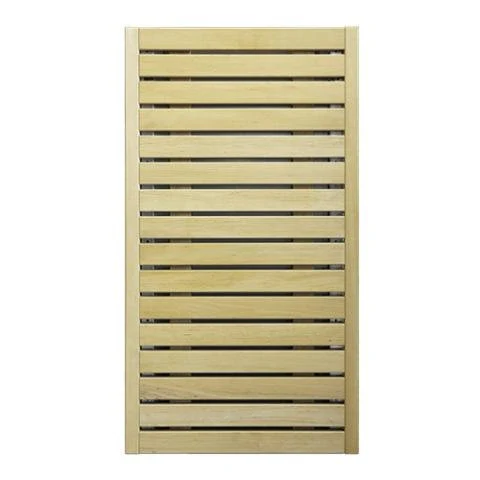

• Wood Panels (4)
• Cover Strip Fastening Screws
• Wood Panel Fastening Screws
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)



Specifications

Heater
Power rating	9 kW
Steam room min	8 m³
Steam room max	13 m³
Holding capacity of sauna rocks	30 kg
Weight	19 kg
Height	830 mm
Width	385 mm
Depth	385 mm
Connection
Fuse	16 A
Supply voltage, 3-phase	3/N~400 V
Power cable (N x mm²)	5 x 1.5



Safety Clearances

A - 40mm | B - 465 | H - 830mm



Manuals

Huum Core Installation and Opperation Manual
