HUUM CLIFF 11kW Bundle

Full Description

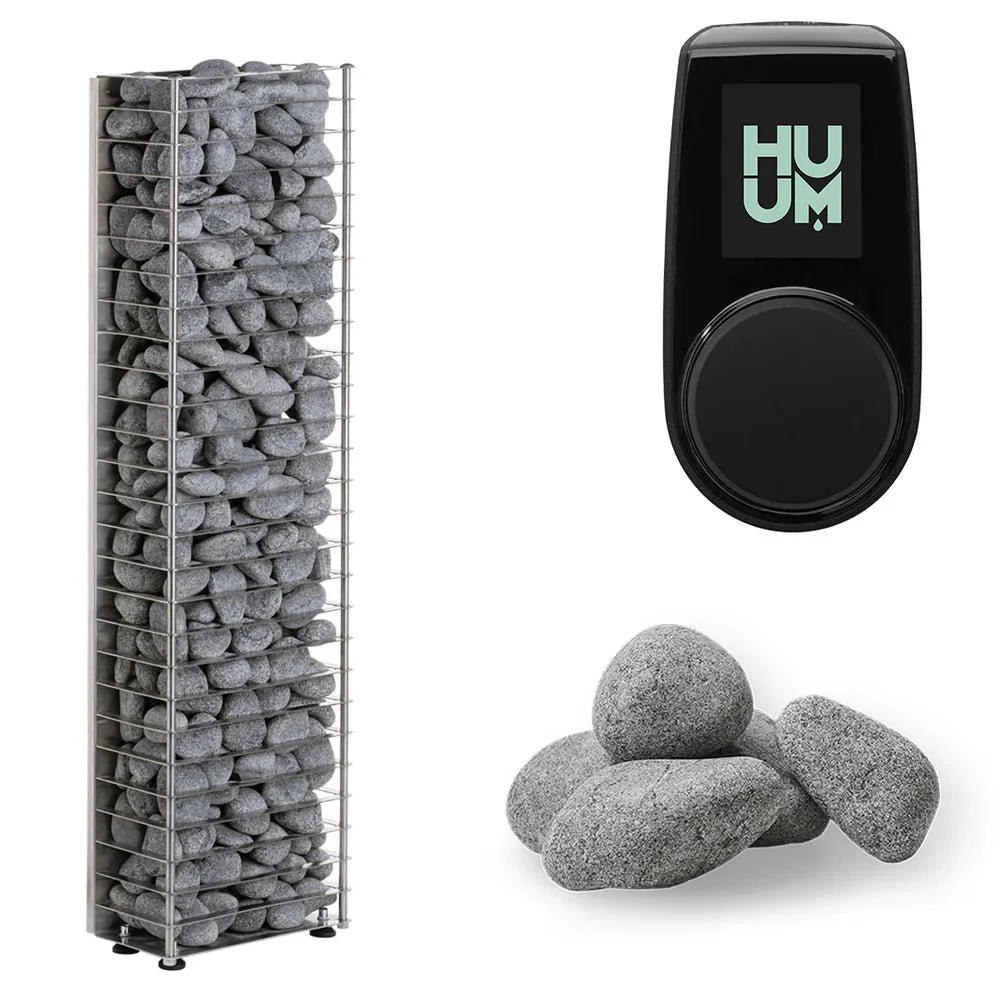

This HUUM Cliff sauna heater package comes complete with the traditionally designed CLIFF 11kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience.



Features

CLIFF 11kW Sauna Heater

• Slim design
• Suitable for use in saunas with limited space
• Small safety distances
• Heats up to 25% faster due to internal air duct
• Works with UKU controls (sold separately)
• Works with UKU extension box (sold separately)
• 165 lb. stone capacity (required 5 boxes sold separately)
• Removable rib(s) for more accurate stacking of stones
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Floor model
• Designed, engineered, and made in Estonia
• Dimensions: 10.6" W (270mm) x 10.6" W (270mm) x 38.4" H (975mm)
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

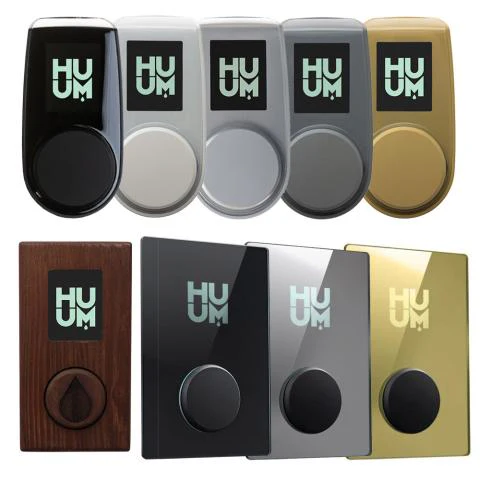

UKU

• Sleek Black control display panel
• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
• Limited 3-year residential warranty and limited 1-year commercial warranty

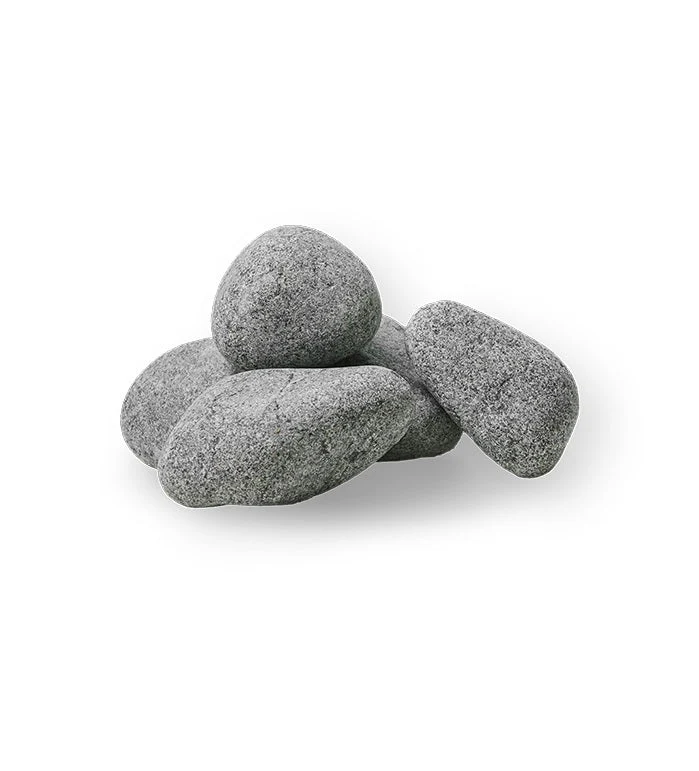

Stones 12

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 1" to 2" (3-5 cm)



Includes

CLIFF 11kW Sauna Heater

• 11kW Sauna Heater
• 2 Prop Blocks (For Removal of Sauna Rib Slats)
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU

• Black Control Console
• Main Control Module
• Temperature Sensor
• Door Sensor
• Control Display Panel Cable
• Temperature Sensor Cable
• Door Sensor Cable
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 12

• 165 lbs of 1" to 2" (3-5 cm) Round Sauna Stones



Specifications

CLIFF 11
Kilowatt Rating	11kW
Minimum Cubic Feet	354
Maximum Cubic Feet	566
Heater Weight	37.5 lbs (17 kg)
Shipping Weight with Sauna Stones	202.5 lbs (92 kg)
240V, Single Phase Amperage	43.75 Amps
Width	10.6"W (270mm)
Depth	10.6"D (270mm)
Height	38.4"H (975mm)



UKU
Minimum Temperature Setting	104°F
Maximum Temperature Setting	230°F
Shipping Weight	20 lbs
Console Dimensions
Width	2.2" (55mm)
Depth	0.9" (22mm)
Height	4.1" (105mm)
Main Module Dimensions
Width	3.5" (90mm)
Depth	2.3" (58mm)
Height	5.6" (142mm)
Display Panel Cable
Length	9.8 ft
AWG	22
Temp Sensor Cable
Length	16.4 ft
AWG	24
Door Sensor Cable
Length	16.4 ft
AWG	24



Safety Clearance

Safety Distances - A: 15" - B: 40.5" - H: 38.4"



Manuals

Huum Cliff Manual

Spec diagram

Stone requirements

Elements required

Warranty

Size your sauna

Certificate of Compliance

Huum UKU Control Manual
