Harvia Pro 20 BK 24kW Bundle

Full Description

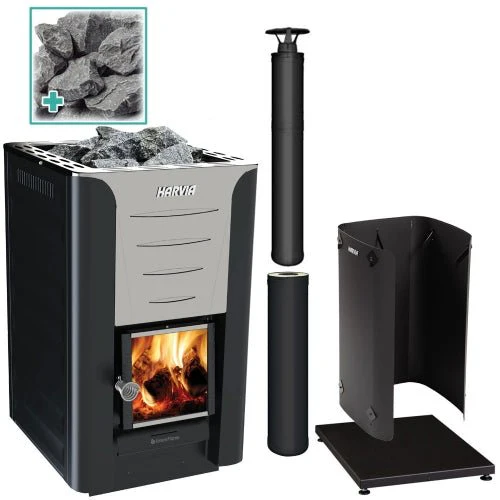

The Harvia Pro 20 BK Sauna Stove Package comes complete with the Pro 20 Sauna Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, and Sauna Stones. This black stove package offers a satisfying sauna bath experience for sauna rooms from 283 to 706 cubic feet (CF).



Features

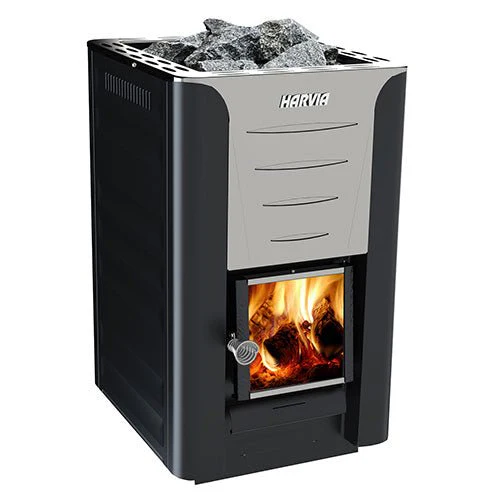

Pro 20 Sauna Stove

• Wood-burning
• 24kW
• Graphite black color
• Stainless steel construction
• Floor model
• Adjustable feet
• Designed, engineered, and made in Finland
• For sauna rooms from 283 to 706 cu. ft.
• 88 pound stone capacity
• Dimensions: 16.9"W (43 cm) x 20"D (51 cm) x 29.9-31.1"H (76-79 cm)
• Limited 2-year warranty (consumer use) and limited 6-month warranty (commercial use)

Protective Bedding

• Black aluminum-zinc coated steel
• Helps protect floors
• Adjustable feet
• Can be installed on a sloping floor
• For wood-burning sauna stoves
• Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

Protective Sheath

• Black steel
• 3-sided sheath
• Reduces safety distance to combustible materials
• Dimensions: 19.7"W (50 cm) x 22.4"D (57 cm) x 32.3"H (82 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

Chimney Kit

• Black powder-coated steel
• CE marking
• Mineral wool insulation material
• Mounts in vertical position
• Able to be easily extended
• Touch protection not needed if installed in a sauna
• Soot fire resistant
• Freeze thaw resistant
• Works with wood-burning sauna stoves
• Works with smaller fireplaces
• Works with iron stoves
• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

Chimney Extension

• Black powder-coated steel
• Prevents movement caused by temperature changes
• Can be installed indoors and outdoors
• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

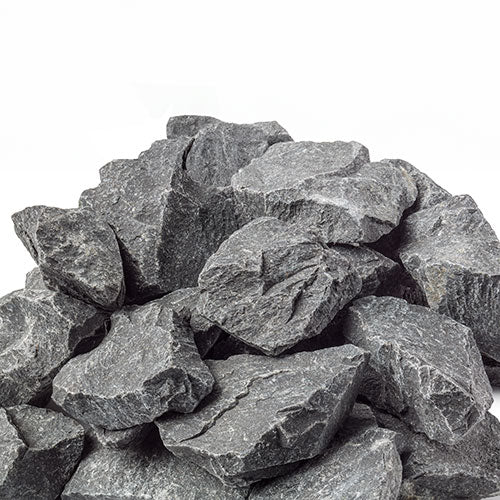

Sauna Stones

• Olivine diabase sauna stones
• Split-face shape
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)



Includes

Pro 20 Sauna Stove

• Sauna Stove
• Stove Door
• Ash Box
• Adjustable Legs
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 6-Month Limited Warranty (Commercial Use)

Protective Bedding

• Small Protective Bedding
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Protective Sheath

• Protective Sheath Panel
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Chimney Kit

• Chimney
• Utility Box
• Non-Insulated Smoke Pipe
• Rain Cap
• Rubber Rain Flange
• Installation Set for Rain Flange
• Stainless Steel Lead-Through Flange for Ceiling
• Lead-Through Insulation and Protector
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Chimney Extension

• 1000mm Chimney Extension
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

• 88 lbs of 4" to 6" (10-15 cm) Split-Face Stones



Specifications

Model	PRO 20
Kilowatt Rating	24kW
Primary Fuel	Wood
Maximum Firewood Length	15" (39 cm)
Diameter of Firewood	3-6" (8-15 cm)
Minimum Cubic Feet	283 cu. ft.
Maximum Cubic Feet	706 cu. ft.
Minimum Room Height	82" (209 cm)
Flue Connection Location	Top and Back
Heater Weight	132 lbs (60 kg)
Shipping Weight with Sauna Stones	220 lbs (100 kg)
Width	16.9" (43 cm)
Depth	20" (51 cm)
Height	29.9-31.1" (76-79 cm)



Model	WL100
Construction Material	Stainless Steel
Color	Black
Weight	23.6 lbs (11 kg)
Width	18.5" (47 cm)
Depth	26.2" (67 cm)
Height	2.4"-3"H (6-8 cm)



Model	WL550
Construction Material	Stainless Steel
Color	Black
Weight	17.4 lbs (8 kg)
Width	19.7" (50 cm)
Depth	22.4" (57 cm)
Height	32.3" (82 cm)



Model	WHP1500M
Construction Material	Stainless Steel
Color	Black
Non-Vertical Installations	Not Allowed
Weight	24.9 lbs (11 kg)
Width	8.7" (22 cm)
Depth	8.7" (22 cm)
Height	59.1" (150 cm)



Model	WHP1000M
Construction Material	Stainless Steel
Color	Black
Non-Vertical Installations	Not Allowed
Wind Load	6.5 ft (2m) Above Last Support
Flexural Strength-Tensile Strength	16.4 ft (5m)
Maximum Spacing of Lateral Supports	9.8 ft (3m)
Weight	14.8 lbs (7 kg)
Width	8.7" (22 cm)
Depth	8.7" (22 cm)
Height	39.4" (100 cm)
