Harvia Legend 150 SS 16kW Bundle

Full Description

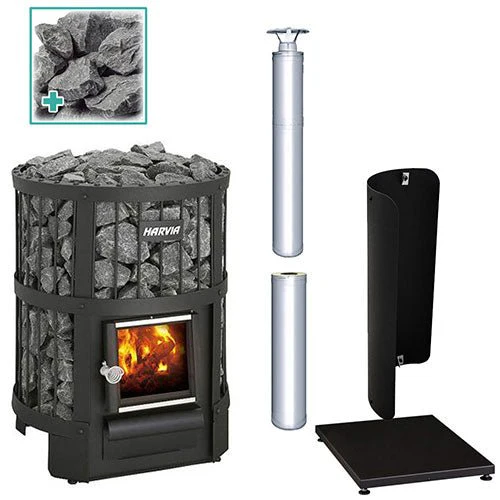

The Harvia Legend 150 SS Sauna Stove Package comes complete with the Legend 150 Sauna Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, and Sauna Stones. This stainless steel stove package offers a comfortably moist sauna bath for sauna rooms from 212 to 459 cubic feet (CF).



Features

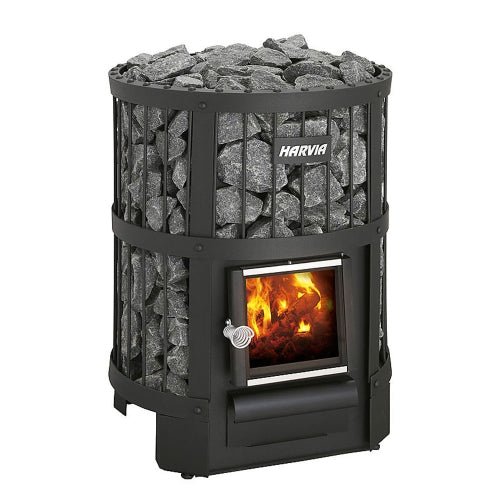

Legend 150 Sauna Stove

• Wood-burning
• 16kW
• Heats two rooms
• Cleaner and efficient burning
• Black steel frame
• Floor model
• Adjustable feet
• Designed, engineered, and made in Finland
• For sauna rooms from 212 to 459 cu. ft.
• 264 pound stone capacity
• Dimensions: 20.9"W (53 cm) x 20.9"D (53 cm) x 29.1"-30.3"H (74-77 cm)
• Limited 2-year warranty (consumer use) and limited 6-month warranty (commercial use)

Protective Bedding

• Black aluminum-zinc coated steel
• Helps protect floors
• Adjustable feet
• Can be installed on a sloping floor
• For wood-burning sauna stoves
• Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

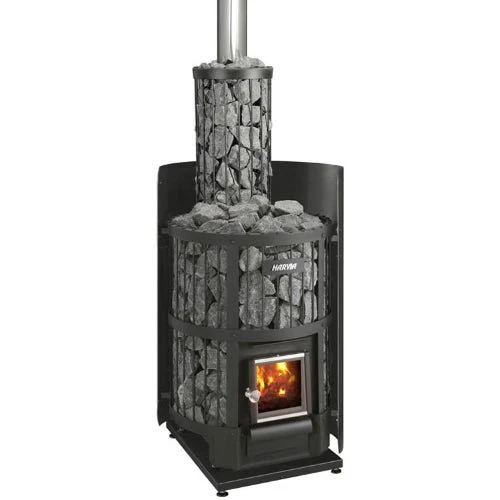

Protective Sheath

• Black steel
• Can range from 1 to 3 as required when mounted
• Reduces safety distance to combustible materials
• Dimensions: 20.5"W (52 cm) x 5"D (13 cm) x 39.4"H (100 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

Chimney Kit

• Stainless steel
• CE marking
• Mineral wool insulation material
• Mounts in vertical position
• Able to be easily extended
• Touch protection not needed if installed in a sauna
• Soot fire resistant
• Freeze thaw resistant
• Works with wood-burning sauna stoves
• Works with smaller fireplaces
• Works with iron stoves
• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

Chimney Extension

• Stainless steel
• Prevents movement caused by temperature changes
• Can be installed indoors and outdoors
• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm)
• Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)

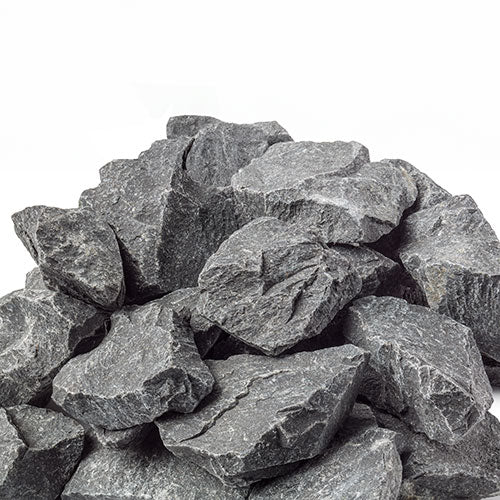

Sauna Stones

• Olivine diabase sauna stones
• Split-face shape
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)



Includes

Legend 150 Sauna Stove

• Sauna Stove
• Stove Door
• Ash Box
• Adjustable Legs
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 6-Month Limited Warranty (Commercial Use)

Protective Bedding

• Small Protective Bedding
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Protective Sheath

• Protective Sheath Panel
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Chimney Kit

• Chimney
• Utility Box
• Non-Insulated Smoke Pipe
• Rain Cap
• Rubber Rain Flange
• Installation Set for Rain Flange
• Stainless Steel Lead-Through Flange for Ceiling
• Lead-Through Insulation and Protector
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Chimney Extension

• 1000mm Chimney Extension
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

• 264 lbs of 4" to 6" (10-15 cm) Split-Face Stones



Specifications



Model	LEGEND 150
Kilowatt Rating	16kW
Primary Fuel	Wood
Maximum Firewood Length	15" (39 cm)
Diameter of Firewood	3-6" (8-15 cm)
Minimum Cubic Feet	212 cu. ft.
Maximum Cubic Feet	459 cu. ft.
Minimum Room Height	69" (175 cm)
Flue Connection Location	Top and Back
Heater Weight	128 lbs (58 kg)
Shipping Weight with Sauna Stones	392 lbs (178 kg)
Width	20.9" (53 cm)
Depth	20.9" (53 cm)
Height	29.1"-30.3" (74-77 cm)



Model	WL100
Construction Material	Stainless Steel
Color	Black
Weight	23.6 lbs (11 kg)
Width	18.5" (47 cm)
Depth	26.2" (67 cm)
Height	2.4"-3"H (6-8 cm)



Model	WL200
Construction Material	Stainless Steel
Color	Black
Weight	15 lbs (7 kg)
Width	20.5" (52 cm)
Depth	5" (13 cm)
Height	39.4" (100 cm)



Model	WHP1500
Construction Material	Stainless Steel
Non-Vertical Installations	Not Allowed
Weight	49.4 lbs (22 kg)
Width	8.7" (22 cm)
Depth	8.7" (22 cm)
Height	59.1" (150 cm)



Model	WHP1000
Construction Material	Stainless Steel
Non-Vertical Installations	Not Allowed
Wind Load	6.5 ft (2m) Above Last Support
Flexural Strength-Tensile Strength	16.4 ft (5m)
Maximum Spacing of Lateral Supports	9.8 ft (3m)
Weight	14.8 lbs (7 kg)
Width	8.7" (22 cm)
Depth	8.7" (22 cm)
Height	39.4" (100 cm)



Manuals

Harvia Legend Sauna Stove Installation and Operation Manual
Harvia Protective Bedding Installation and Operation Manual
Harvia Protective Sheath Installation and Operation Manual
Harvia Chimney Kit Installation and Operation Manual
Harvia Chimney Extension Kit Installation and Operation Manual
Harvia Legend 150 Spec Sheet
Harvia Legend 150 Warranty
